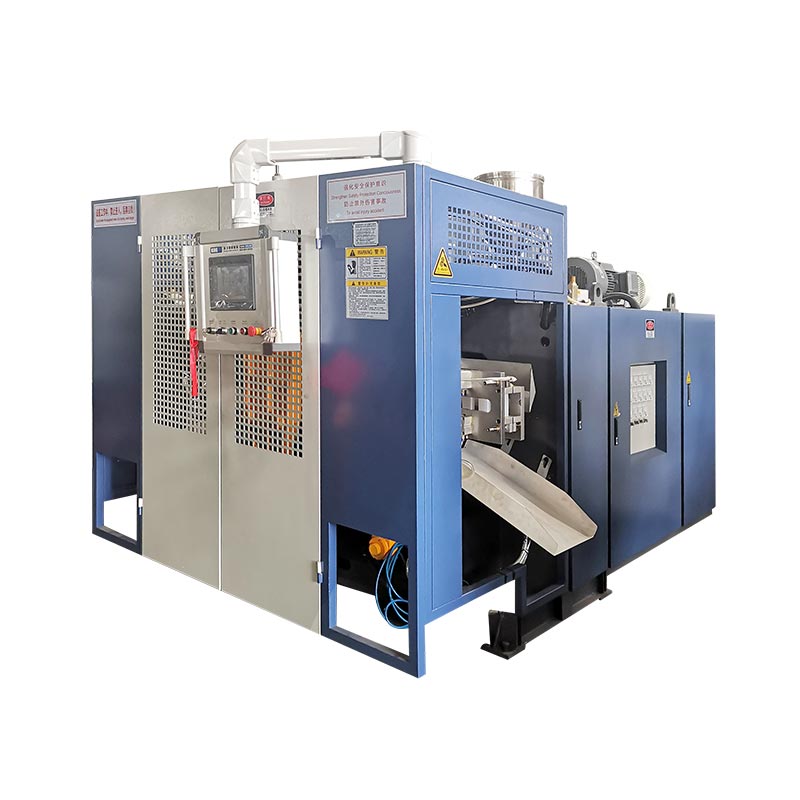

2l labajibbaaranaha xididdada mashiinka ka-saarida

Model:KGB2D

Kor u qaad wax soo saarkaaga wax soo saarkayaga tayo sare leh 2l labajibbaaranaha ah ee ku-dhaafka ah mashiinka wasakhda ah. Waxaa loogu talagalay in ugu badnaan weelka 2L, nidaamkan is-dhexgalka ah ee is-dhex-galka ah si aan kala go 'lahayn ayaa la qabsan karaa soo saarista badeecooyin fara badan.

Mugga: 2lMiisaan: 4.5T

Soo dir weydiin

Sharaxaada Alaabta Specification Application

Si fudud u beddelo a 2, 3, ama 4 Multi-dhinta oo dhinta si loo habeeyo mugga yaryar, taasoo ka dhigaysa mid ku habboon codsiyada kaladuwan. Laga soo bilaabo dhalooyinka shaambada ah ilaa dhalada caano-ka-maydhka waxay damiyaan baahida mashiinka cabasha, tan 2l labajibbaarane labajibbaaranaha makiinadda mashiinka caaryada waxay gaarsiisaa tayo sare oo tayo leh oo joogto ah iyo wax soo saarka gaarka ah. Sahaminta dhaladayada caagga ah ee caagga ah oo ku tuura qiimaha mashiinka caaryada oo furfuran suurtagalnimada faa iidada kordhay.

Tilmaamaha iyo Faa'iidooyinka

Nidaamka xakamaynta elektiroonigga ah ee horumarsan waxaa loo qaddarin karaa "maskaxda caqliga" ee hawlgalka, oo ay ku qalabeysan tahay xakameynta Mutsubishi-ka Mitsubishi-ka, oo leh hanaanka hufnaanta saxda ah iyo awooda lagu fuliyo tilmaamaha adag si sax ah. Isla mar ahaantaana, qaabeynta fikirka ah ee badhamada madaxa banaan waxay u oggolaaneysaa hawl wadeenada inay si dhakhso leh u bilaabaan oo si fudud u soo xaadiraan xaaladaha kala duwan ee loo baahan yahay waqti kasta, oo ay ku guuleystaan iskaashiga mashiinka, iyo in ay gaaraan iskaashiga mashiinka aadanaha ee hufan.
Qoraalka iyo astaamaha badan ee kaladuwan ayaa diirada saaraya soosaarka yar ee weelasha yar yar ee weelasha yar yar iyo kuwa dhexdhexaadka ah ee 2l iyo hoosta. Naqshadeynta jirku ee la habeeyey waxay ku guuleysataa waxtarka ugu sareeya meel bannaan, aag yar, way fududahay in la dhiso, oo uu si buuxda ula qabsan karo qaabab kala duwan oo wax soosaarka ah. Haddii ay tahay aqoon isweydaarsi yar ama warshad baaxad weyn, si fudud ayaa loo xakamayn karaa, iyadoo la siinayo xalka wax soo saarka ee ugu habboon ee shirkadaha cabbirrada kaladuwan.

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB2D
Specification
1	Max container capacity	2L
2	Output(dry Cycle)	600 x 2 PC/HR
3	Machine Dimension(L×W×H)	3.1M x2.2 M x2.5 M
4	Machine weight	4.5 T
Clamping Unit
1	Clamping force	40 KN
2	Mold platen size(W×H)	338 MM x 430 MM
3	Platen openingstroke	145 MM - 368 MM
4	Platen moving stroke	370 MM
5	Max mold size(W×H)	360 MM×380 MM
6	Mold thickness	160 MM - 300 MM
Power
1	Servooil pump motor power	11KW
2	Servo pump displacement	80 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.6 M²/MIN
5	Cooling water pressure	0.2-0.3 Mpa
6	Water consumption	60 L/min
7	Average energy consumption	12 KW-18 KW
Extruder unit
1	Screw diameter	60 MM
2	Screw L/D ratio	25 L/D
3	HDPEMelting capacit for HDPE	55 Kg/hr
4	Number of heating zone	3 ZONE
5	Screw heating power	12.6 KW
6	Screw fanpower	0.25 KW
7	Extruder motor power	15 KW
Die head
1	Number of heating sections	3*5 ZONE
2	Heating power	3.2 KW
3	Maxdie-pin diameter	90 MM
4	2Center distance of double die head	130MM
5	2MTMax die-pindiameter	60MM
