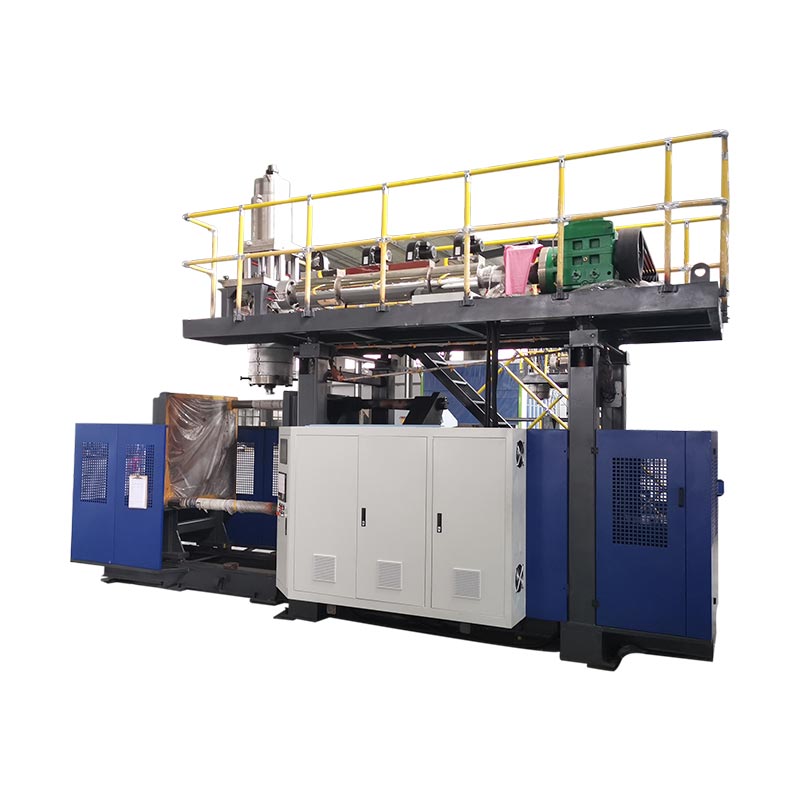

250l ayaa uruursanaa mashiinka wasakhda ah

Model:KGB120E

Furitaankan go'an iyo xiritaanka mashiinka caaryada, oo muujinaya labalaab jiid rod syntron syntronous iyo dhululuubtooyinka tooska ah. Ku qalabeysan nidaamka ka-hortagga hydralic ee wax ka qabashada degdegga ah iyo keydka tamarta, 250l waxay uruursataa mashiinka wasakhda ah ee kafahaysa sifeeyo fara badan, oo ka soo baxa weelal ballaadhan.

Mugga: 250lMiisaan: 28T

Soo dir weydiin

Sharaxaada Alaabta

Moodelka caadiga ah ee KGB120E, oo ah hogaaminta madaxa qulqulaya mashiinka wasakhda ah, Waxaa ku jira koontaroolka dhumucda ee murqaha ah ee murqaha ah, gacanta robot, iyo hoos udhaca hoose Nidaamka, kor u qaadista wax soo saarka iyo tayada. Tani waxay iskuxiran tahay 250l oo uruursada mashiinka caaryo-ka-xilqaduhu waa mid fiican Codsiyada kala duwan, oo ay ku jiraan mashiinka qashinka kiimikada xalka, gogosha balaastigga ah waxay dhaansadaan geedi socodka mashiinka mashiinka cashaynta, biyo balaastig ah haanto haanta codsiyada mashiinka caaryada, iyo soosaarka 200-220l Barbaro laba-garaac, haamaha baabuurta, qaybaha gawaarida, caqabadaha taraafikada, dawada Alaabta guriga, boogyada saqafka, kuraasta, miisaska, gogosha, doomaha, iyo inbadan.

Faahfaahinta

Nambarka tareenka	Qalabka PE, PP, ABS ...	Caaryada xiritaanka dhululubada saliida (dhululubo hal ah)
Nambarka tareenka	Qalabka PE, PP, ABS ...	Moodada Mashiinka: KGB120E
Faahfaahinta
1	Awoodda weelka ugu badan	250 l
2	Wax soo saarka (wareegga qallalan)	300 PC / Hr
3	Cabbirka mashiinka (L × W × h)	7.6 m x 4.3 m x5.5 m
4	Miisaan mashiin	28 T
Qaybta Qulqulka
1	Xirmooyinka gacanta	800 kn-1200 KN
2	Xarkaha xajmiga ah ee 'pluend pluen' (W × h)	1300 mm x 1400mm
3	Taarikada istaroogga furitaanka	800 mm-1800 mm
4	Stroke Guusha Platen	700 mm
5	Cabbirka caaryada ee ugu badh (W × h)	1100 mm x 1700 mm
6	Dhumuc caar ah	810 mm - 900 mm
Awood
1	PATIO METTO PATIOT PATIOT	37 kw
2	Barakaca sedecada	250 l / min
3	Dharbaaxo cadaadis	0.8 MPA
4	Isticmaalka hawada	1.8 m³ / min
5	Qaboojinta cadaadiska biyaha	0.3 MPA
6	Isticmaalka biyaha	120 l / min
7	Isticmaalka tamarta celceliska	80 KW -90 KW
Qaybta Soo-saaridda
1	Dhexroor furan	120 mm
2	Xoq l / D saami	25 l / D
3	Hdpemeliting Capacit for Hdpe	250 kg / hr-320 kg / hr
4	Tirada aagga kuleylka	6 aag
5	Xoogga kuleylka	30.2 kw
6	Awoodda taageerta	0.6 kw
7	Awoodda galka garka	90 (110) KW
Madaxa dhinta
1	Tirada qaybaha kuleylka	5 aag
2	Awoodda kuleylka	38.8 kw
3	Max dhinta-PIN-PIN	600 (700) mm
4	Awoodda Uruurinta	20 (25) l
5	(PE) miisaanka aruurinta	15 (18) kg

Tilmaamaha iyo Faa'iidooyinka

Loo adeegsaday wax soo saarka wax soo saarka ee warshadaha kala duwan. Haddii ay tahay weelal u adkaysata korantada awooda ee warshadaha kiimikada, dhalooyinka baakadaha leh ee leh heerar adag oo nadaafadeed, ama sanaadiiqda baakadaha oo ay u muuqdaan wax soosaarka kiimikada, waxaa si sax ah loo xakameyn karaa si ay ula kulmaan baahiyaha suuqa kaladuwan.
Nidaamka quudinta wuxuu qabanayaa tikniyoolajiyadda goynta-goynta waxaana lagu hagaajinayaa iyadoo lagu saleynayo astaamaha wax soo saarka awooda sare ee mashiinka wasakhda ah ee 120e. Si sax ah u habeeyaan heerka socodka iyo qaybinta alaabta ceyriinka si loo hubiyo dhumucda darbiga ee isku-dhafka ah inta lagu gudajiro wax-ka-qabashada qalabka waaweyn ee ultra, si wax ku ool ah u xoojiya xoogga qaabdhismeedka ee sheyga, iyo baabi'inta ciladaha tayada ee ay sababaan quudinta aan sinnayn.

Aagagga dalabka

ugu badnaan 220l laba-giraan-furan oo furan ama weelka kiimikada dusha sare / durbaanka / foosto; Qaybaha gawaarida / Xaraashka taraafikada / alaabada lagu ciyaaro / alaabta / alaabta guriga / pallt

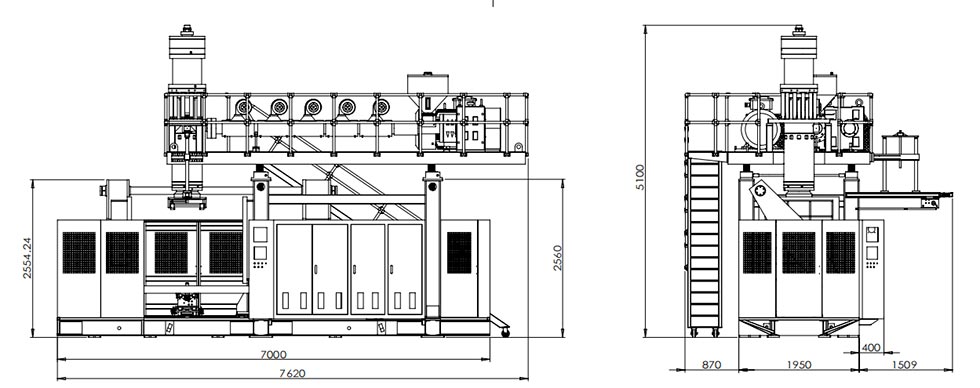

250L accumulate blow molding machine
