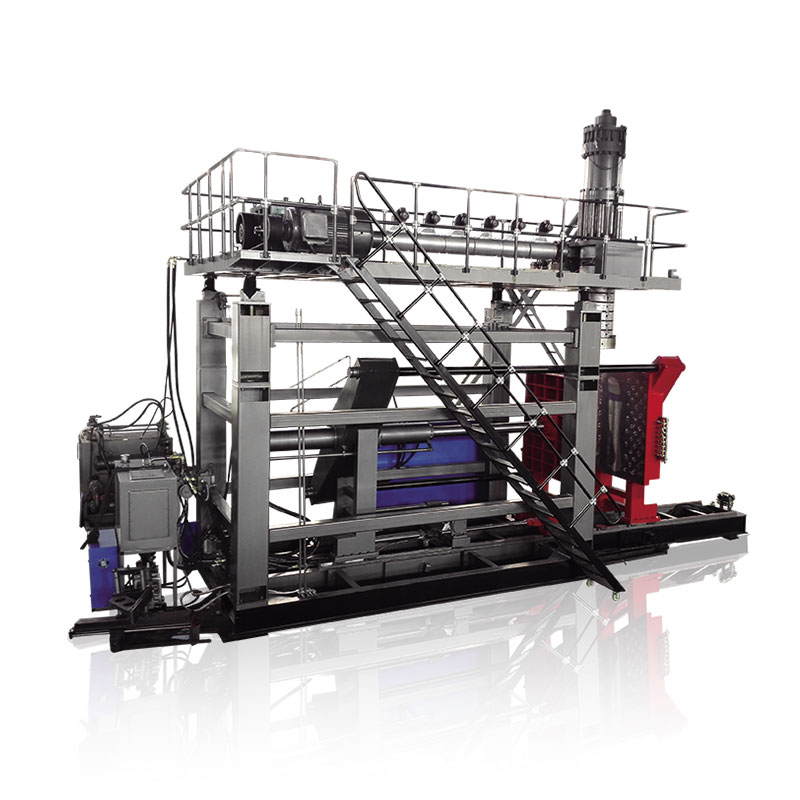

250l wuxuu uruursadaa mashiinka foodda qaaska mashiinka ah ee mashiinka caaryada

Model:KGB200L/LP

Tani waxay ku takhasusay 250l ee ku takhasusay mashiinka foodda kiimikada ee mashiinka caaryada waxaa si gaar ah loogu talagalay soo saarista tayo sare leh 220l-giraanta kiimikada buluuga ah. U adeegsiga hab-xiritaan furan oo xidhitaan leh oo leh laba jibbaaro isku-dubbari ah oo labanlaab ah oo isku xiraya, waxay hubisaa in la qabto caaryo oo deggan oo waarta.

Mugga: 250lMiisaan: 39t

Soo dir weydiin

Sharaxaada Alaabta Specification Application

Lakabka laba-lakabka ah ee la ruqsheega, laba-farqiga ugu fiican ee madaxa u dhinta madaxa, isku-darka Iyada oo leh cutub-soo-saar qabad-sare oo sare, waxay gaarsiisaa natiijooyin gaar ah. Waxan Qulqulka foosto ee kiimikada ah Xakamee, gacanta Robot, iyo nidaamka gubashada hoose ee waxtarka la xoojiyay. Durbaashyada la soo saaray waxay la kulmaan heerar tayo leh oo adag, oo ay ku jiraan gudbinta Tijaabada 3-mitir ee baaritaanka iyo helitaanka shahaadada UN-ka.

Tilmaamaha iyo Faa'iidooyinka

Laba-laab-ka-xirxiridda Ceelka Center Sent Child Self ee Dulleeyaha madax
● Ku gaarista awoodda soosaarka sare iyada oo loo marayo naqshadda iyo saxnaanta wax soo saar, awood u leh soo saarista 17-20 gogo '
Foordooyinka la soo saaray waxay dhaafi karaan imtixaanka 3M-ka ee ka soo baxa UN-ka shahaado

Miisaankii 200l foosto: 12-15 kg

Qalabka: hmwhddpe

Dhumucdii: 3.5-4 mm

Bartan kiimikada ee khaaska ah ee ku-taxan mashiinka caaryada waxaa loogu talagalay wax soo saarka hufan ee tayo sare leh 220l-giraanta laba-geesood buluug ah. U adeegsiga hab-xiritaan furan oo go'an, oo ah laba jibbaaro gacmeed isku-dhafan oo isku xiraya nidaam laba-laab ah, iyo lakab lakab ah, isku-darka laba-ugufiican, waxay umushay waxqabadka gaarka ah.

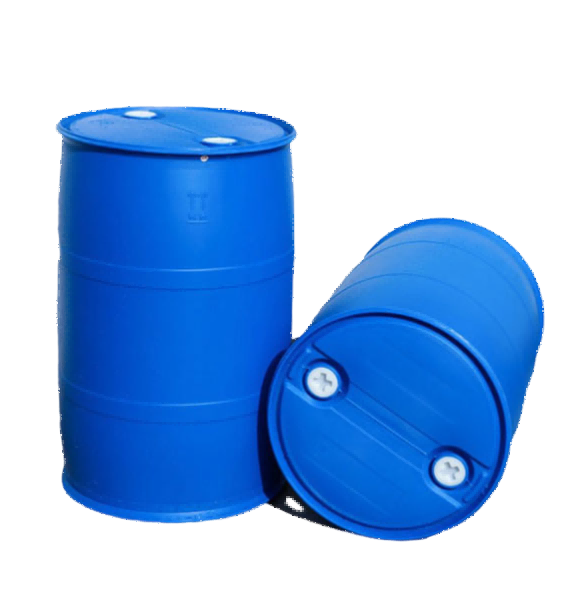

Double layer 220L double-ring chemical barrel blow molding machine

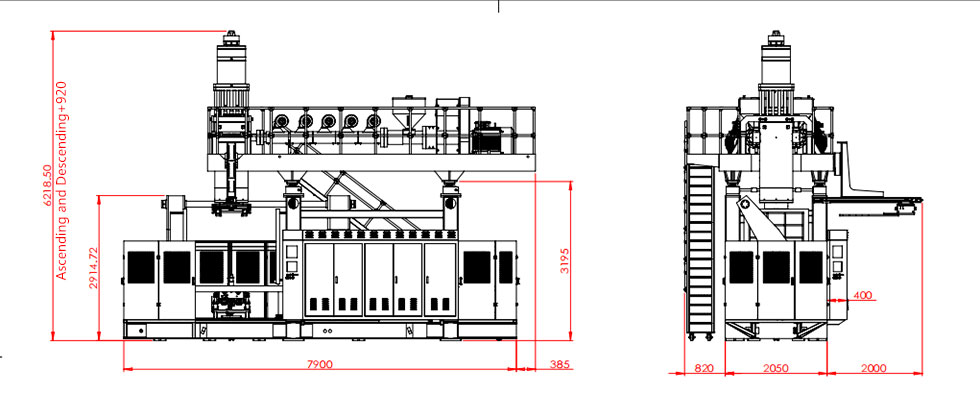

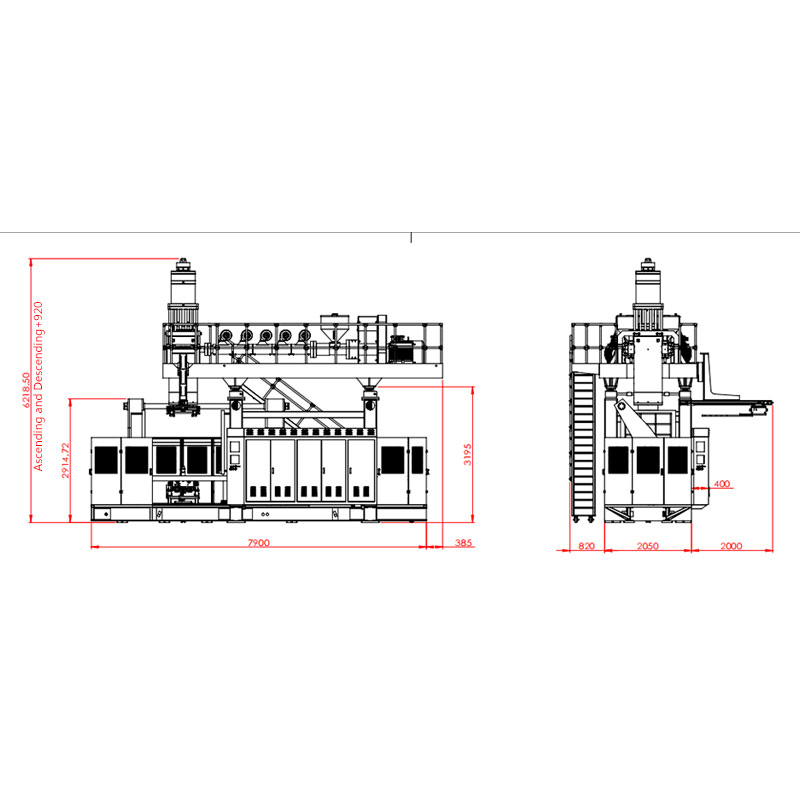

Sawiridda

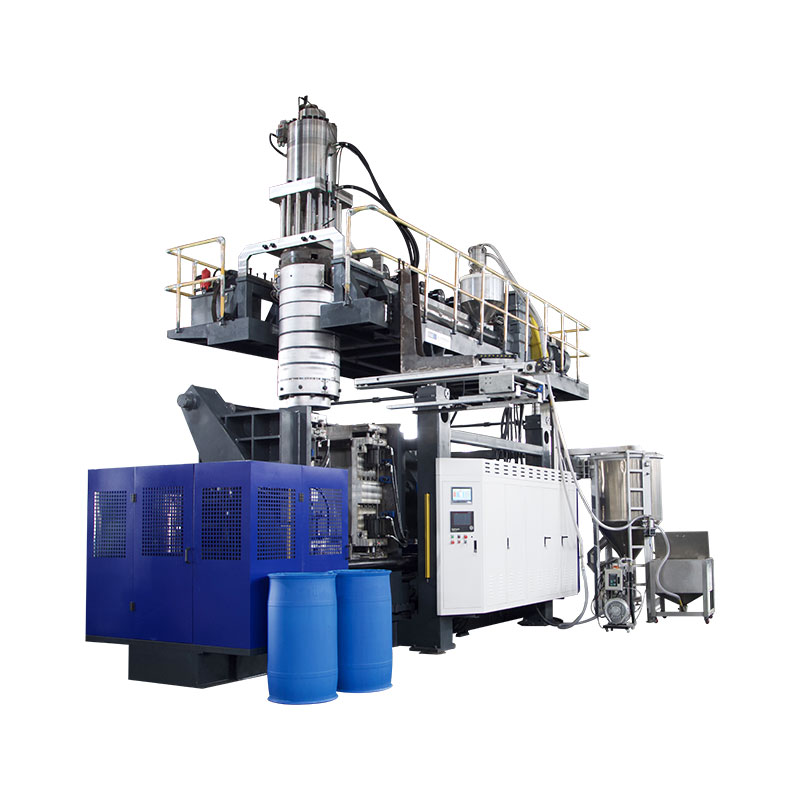

250L accumulate chemical barrel special blow molding machine

Specifications

Serial number	Material PE、PP、ABS、HMWHDPE..	Fixed open- closing type Specialized Machine Series
Serial number	Material PE、PP、ABS、HMWHDPE..	Machine model:KGB200L/LP
Specifications
1	Max container capacity	250 L
2	Output(dry Cycle)	300 PC/HR
3	Machine Dimension(L×W×H)	9.5 M x 4.1 M x 6.5 M
4	Machine weight	39 T
Clamping Unit
1	Clamping force	760 KN
2	Mold platen size(W×H)	1300 MM x 1500 MM
3	Platen opening stroke	800 MM - 1800 MM
4	Platen moving stroke	950 MM
5	Max mold size(W×H)	1100 MM×1700 MM
6	Mold thickness	810 MM-950 MM
Power
1	Servo oil pump motor power	37 KW + 22 KW
2	Servopump displacement	200 L/MIN + 138 L/MIN
3	Blow pressure	0.8 Mpa
4	Air consumption	1.8 M³/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	70 KW- 80 KW
Extruder unit
1	Screw diameter	100 MMx2 MM
2	Screw L/D ratio	32 L/D
3	Melting capacit for HDPE	180 Kg/hr x 2 Kg/hr
4	Number of heating zone	6 ZONE
5	Screw heating power	30.2 KW
6	Screw fan power	0.6 KW
7	Extruder motor power	90 KW x 2 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.8 KW
3	Max die-pin diameter	450 MM
4	Accumulator capacity	25 L
5	(PE)Accumulator weight	18 KG
